StatBean Name: GageRandRTable

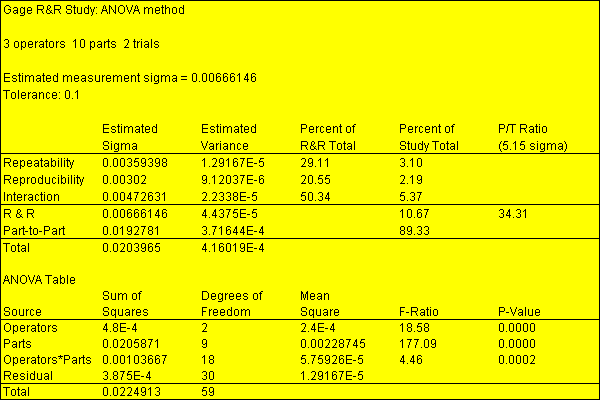

Purpose: Displays summary of a gage R&R study.

DataSource: GageRandR

Read/Write Properties

Name	Type	Description	Possible Values	Default Value
showANOVA	boolean	Whether to display the analysis of variance table.	true,false	true
showEstimatedSigma	boolean	Whether to display a line with the estimated R&R sigma.	true,false	true
showParts	boolean	Whether to display an analysis of part-to-part variability.	true,false	true
showRandRTable	boolean	Whether to display a table showing the estimated R&R components.	true,false	true
showStudySize	boolean	Whether to display a summary of the study size.	true,false	true
showTitle	boolean	Whether to display a title at the top of the page.	true,false	true
sigmaMultiple	double	Multiple of sigma used to compute P/T ratio.	>0	5.15
tolerance	double	Width of specification.	>0 to include P/T ratio	0.0

Other properties are inherited from the java.awt.Panel class and from the general TabularStatbean class.

Code Sample - see GageRandR.
