StatBean Name: MultipleXYPlot

Purpose: Displays a scatterplot or lineplot for two or more sets of numeric columns.

DataSource: any.

Read/Write Properties

Name	Type	Description	Possible Values	Default Value
connected	boolean[]	Whether the points should be connected with a line.	true,false	false
forceEqualScales	boolean	Whether to force the x-axis and y-axis scaling to be the same.	true,false	false
points	boolean[]	Whether point symbols should be plotted.	true,false	true
showLegends	boolean	Whether to display legends at the right of the plot.	true,false	true
suppressXaxis	boolean	Whether to suppress display of the x-axis scaling and ticmarks.	true,false	false
suppressYaxis	boolean	Whether to suppress display of the y-axis scaling and ticmarks.	true,false	false
tablewiseExclusion	boolean	Whether all rows of the data table containing a missing value in any column should be excluded from the plot.	true,false	false
xVariableNames	String[]	The name of one or more columns with data values to be plotted on the horizontal axis.	Any string.
yVariableNames	String[]	The name of one or more columns with data values to be plotted on the vertical axis.	Any string.

Other properties are inherited from the java.awt.Canvas class and from the general GraphicalStatbean class.

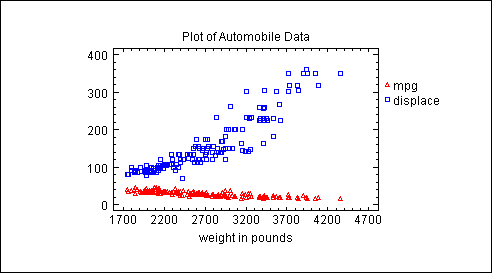

Code Sample

//create a datasource bean
FileDataSource fileDataSource1 = new STATBEANS.FileDataSource();

//set the file name to be read
fileDataSource1.setFileName("c:\\statbeans\\samples\\cardata.txt");

//set the delimiter character used in the file
fileDataSource1.setDelimiter("tab");

//create a plot bean
XYPlot xYPlot1 = new STATBEANS.XYPlot();

//set the columns for the x and y axes
String xnames[]=new String[1];
xnames[0]="weight";
String ynames[]=new String[2];
ynames[0]="mpg";
ynames[1]="displace";
xYPlot1.setXVariableNames(xnames);
xYPlot1.setYVariableNames(ynames);

//set the point types and color
String ptype[]={"triangle","square"};
xYPlot1.setPointTypes(ptype);
Color pcolor[]={Color.blue,Color.green};
xYPlot1.setPointColors(pcolor);

//override the top title
xYPlot1.setTopTitleLine1("Plot of Automobile Data");

//override the xaxis title
xYPlot1.setXaxisTitle("weight in pounds");

//turn on point identifcation
xYPlot1.setHighlightPointOnMouseClick(true);
xYPlot1.setShowPointClickedMessage(true);

//add the plot to the application frame
add(xYPlot1);

//make the plot a listener for changes in the FileDataSource bean
fileDataSource1.addDataChangeListener(xYPlot1.listenerForDataChange);

//instruct the fileDataSource bean to read the file
fileDataSource1.readData();
