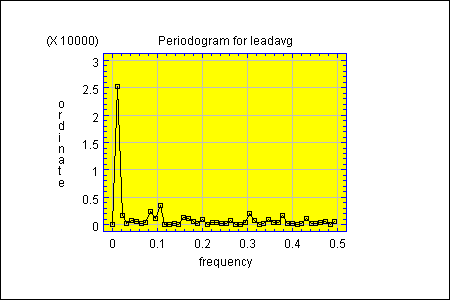

StatBean Name: PeriodogramPlot

Purpose: Plots a peridodogram or integreated periodogram for a time series.

DataSource: any.

Read/Write Properties

Name	Type	Description	Possible Values	Default Value
integrated	boolean	Whether to plot a cumulative periodogram.	true,false	false
probabilityLimitsColor	Color	The color of the probability limits.	Any valid Color.	Color.red
removeMean	boolean	Whether to subtract mean from time series before calculating periodogram.	true,false	true
seasonalLength	int	The number of time periods comprising a season.	1+	1
showProbabilityLimits	boolean	Whether to display 95% and 99% Kolmogorov-Smirnov limits on an integrated plot.	true,false	true
taper	double	Amount of tapering to apply at each end of time series (as a percentage).	0.0-50.0	0.0
timeSeriesVariableName	String	The name of the column with data values to be plotted.	Any string.	""

Other Public Methods

Name	Description	Arguments	Return Value
double getCumulativeSum(int i)	Returns the sum of the first i+1 ordinates.	Index.	Cumulative sum.
double getFrequency(int i)	Returns the i-th Fourier frequency.	Index.	Frequency.
int getNumberOfMissingValuesReplaced()	Returns the number of missing values replaced with estimates.	None.	Number replaced.
int getNumberOfOrdinates()	Returns the number of ordinates (or frequencies).	None.	Number.
double getOrdinate(int i)	Returns the periodogram ordinate at the i-th frequency.	Index.	Ordinate.
double getSum()	Returns the sum all the ordinates.	None.	Sum.
int getSampleSize()	Returns the number of data values used to obtain estimates.	None.	Sample size.

Code Sample

//create a datasource bean
FileDataSource fileDataSource1 = new STATBEANS.FileDataSource();

//set the file name to be read
fileDataSource1.setFileName("c:\\statbeans\\samples\\stocks.txt");
//create a plot bean

PeriodogramPlot plot1 = new STATBEANS.PeriodogramPlot();
//set the variable names for plotting

plot1.setTimeSeriesVariableName("price");

//add the plot to the application frame
add(plot1);

//make the plot bean a listener for changes in the FileDataSource bean
fileDataSource1.addDataChangeListener(plot1.listenerForDataChange);

//instruct the fileDataSource bean to read the file
fileDataSource1.readData();
