StatBean Name: XYPlot

Purpose: Displays a scatterplot or lineplot for two numeric columns.

DataSource: any.

Read/Write Properties

Name	Type	Description	Possible Values	Default Value
connected	boolean	Whether the points should be connected with a line.	true,false	false
forceEqualScales	boolean	Whether to force the x-axis and y-axis scaling to be the same.	true,false	false
points	boolean	Whether point symbols should be plotted.	true,false	true
referenceLine	String	Type of reference line, if any, to be added to the plot.	"None", "Horizontal", "Vertical", "Diagonal"	"None"
referenceLineColor	Color	Color for drawing the reference line.	Any valid color.	Color.black
referenceLineLocation	double	Location of a horizontal or vertical reference line.	Any double value.	0.0
smootherColor	Color	Color for drawing the smooth.	Any valid color.	Color.blue
smootherPercentage	int	Width of the smoother as a percentage of the number of observations.	1-99	50
smootherType	String	Type of smoother, if any, to be added to the plot.	"None", "Running Means", "Running Lines", "LOWESS", "Robust LOWESS"	"None"
suppressXaxis	boolean	Whether to suppress display of the x-axis scaling and ticmarks.	true,false	false
suppressYaxis	boolean	Whether to suppress display of the y-axis scaling and ticmarks.	true,false	false
tablewiseExclusion	boolean	Whether all rows of the data table containing a missing value in any column should be excluded from the plot.	true,false	false
xVariableName	String	The name of the column with data values to be plotted on the horizontal axis.	Any string.	"X"
yVariableName	String	The name of the column with data values to be plotted on the vertical axis.	Any string.	"Y"

Other properties are inherited from the java.awt.Canvas class and from the general GraphicalStatbean class.

Code Sample

//create a datasource bean
FileDataSource fileDataSource1 = new STATBEANS.FileDataSource();

//set the file name to be read
fileDataSource1.setFileName("c:\\statbeans\\samples\\cardata.txt");

//set the delimiter character used in the file
fileDataSource1.setDelimiter("tab");

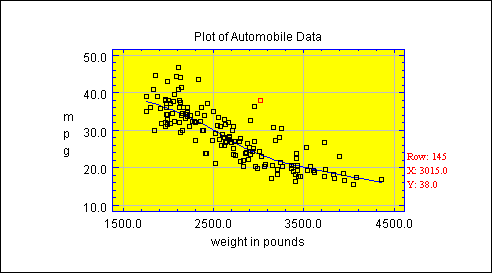

//create a plot bean
XYPlot xYPlot1 = new STATBEANS.XYPlot();

//set the columns for the x and y axes
xYPlot1.setYVariableName("mpg");
xYPlot1.setXVariableName("weight");

//override default scaling
xYPlot1.setUseDefaultScaling(false);

//set scaling for x-axis
xYPlot1.setXaxisFrom(1500.0);
xYPlot1.setXaxisTo(4500.0);
xYPlot1.setXaxisBy(1000.0);

//set scaling for y-axis
xYPlot1.setYaxisFrom(10.0);
xYPlot1.setYaxisTo(50.0);
xYPlot1.setYaxisBy(10.0);

//add a smoother
xYPlot1.setSmootherType("Robust LOWESS");

//override the top title
xYPlot1.setTopTitleLine1("Plot of Automobile Data");

//override the xaxis title
xYPlot1.setXaxisTitle("weight in pounds");

//turn on point identifcation
xYPlot1.setHighlightPointOnMouseClick(true);
xYPlot1.setShowPointClickedMessage(true);

//add the plot to the application frame
add(xYPlot1);

//make the plot a listener for changes in the FileDataSource bean
fileDataSource1.addDataChangeListener(xYPlot1.listenerForDataChange);

//instruct the fileDataSource bean to read the file
fileDataSource1.readData();
